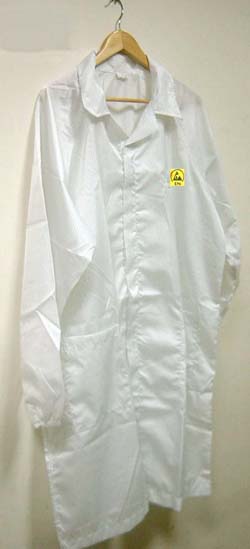

No-Stat CL Series ZeroCharge Clean Room Lab Coats |
No-Stat Lab CL Series Coats Sizes and Dimensions
| Size |
S |
M |
L |
XL |
2XL |
3XL |
4XL |
| Labcoat length |
101cm |
103cm |
104cm |
105cm |
107cm |
108cm |
109cm |
| Chest |
112cm |
117cm |
122cm |
127cm |
132cm |
137cm |
142cm |
| Outside sleeve |
75cm |
76cm |
79cm |
81cm |
84cm |
86cm |
89cm |
| Suitable height |
160cm |
165cm |
170cm |
175cm |
180cm |
185cm |
190cm |
Select part number from the following table:
| Part Number |
Description |
| A-NoStat xx CLSZ |
Fabric Strip Type, x = size: S, M, L, XL, 2XL, 3XL, or 4XL, slide fastener |
| A-NoStat xx CLSB |
Fabric Strip Type, x = size: S, M, L, XL, 2XL, 3XL, or 4XL, slide fastener |
| A-NoStat xx CLGZ |
Fabric Grid Type, x = size: S, M, L, XL, 2XL, 3XL, or 4XL, snap fastener |
| A-NoStat xx CLGB |
Fabric Grid Type, x = size: S, M, L, XL, 2XL, 3XL, or 4XL, snap fastener |
Static Dissipative Fabrics

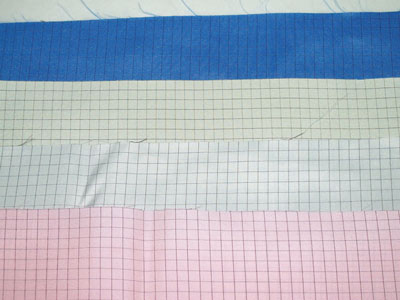

CLG Fabric: WF-5505A [ Grid type ]
| Item |
Specification |
Test Method |
| Composition |
Polyester filament yarn with
Carbon compound filament yarn |
ASTM-D-629 |
| Weave |
2/1 twill, 5mm grid |
|
| Weight |
95g/m² |
|
| Width |
60 inch |
|
| Density |
Warp – 150 ends/inch
Weft – 109 ends/inch |
|
| Yarn Type |
Warp – Polyester 75 denier/36F; conductive 70 dinier/25F
Weft – Polyester 75 dinier/72F; conductive 70 dinier/25F |
|
| Surface Resistivity |
10e5 ~ 10e6 ohm/unit |
DIN 54345 |
Friction charges
Electrication Potential |
35 V |
JIS L1094-B |
| Decay time |
± 0.01 Sec |
NFPA-99 |
| Air Permeability |
6.0 c.c. / cm² / Sec |
JIS L1096-A |
| Tear Strength |
Warp : 3 kgs
Weft : 1.9 kgs |
ISO 5082 :1982-1"
Grab test |
| Tensile Strength |
Warp : 58 kgs
Weft : 49.6 kgs |
ISO 9290:1990-falling
Pendulum method B |
| Color retention |
After water washing 4-5 grad
After wet friction 4-5 grad
Light fastness 4-5 grad
After dry friction 4-5 grad |
ISO 105 C03-30min
ISO 105 D01: 1993
ISO 105 E01:1994
ISO 105 B02:1994 |
| Half-Life |
4 Sec |
JIS L1094-A |

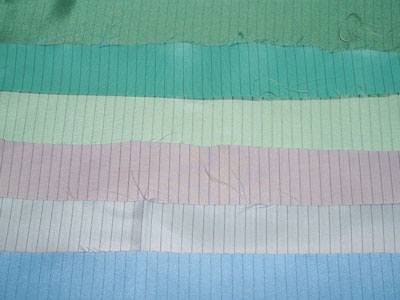

CLS Fabric: WF-5605A [ Strip type]
| Item |
Specification |
Test Method |
| Composition |
Polyester filament yarn with
Carbon compound filament yarn |
ASTM-D-629 |
| Weave |
2/1 twill, 5mm strip |
|
| Weight |
95g/m² |
|
| Width |
60 inch |
|
| Density |
Warp – 150 ends/inch
Weft – 109 ends/inch |
|
| Yarn Type |
Warp – Polyester 75 denier/36F; conductive 70 dinier/25F
Weft – Polyester 75 dinier/72F |
|
| Surface Resistivity |
10e5 ~ 10e6 ohm/unit |
DIN 54345 |
Friction charges
Electrication Potential |
180 V |
JIS L1094-B |
| Decay time |
± 0.01 Sec |
NFPA-99 |
| Air Permeability |
6.4 c.c. / cm² / Sec |
JIS L1096-A |
| Tear Strength |
Warp : 2.8 kgs
Weft : 1.7 kgs |
ISO 5082 :1982-1"
Grab test |
| Tensile Strength |
Warp : 57.8 kgs
Weft : 52.7 kgs |
ISO 9290:1990-falling
Pendulum method B |
| Color retention |
After water washing 4-5 grad
After wet friction 4-5 grad
Light fastness 4-5 grad
After dry friction 4-5 grad |
ISO 105 C03-30min
ISO 105 D01: 1993
ISO 105 E01:1994
ISO 105 B02:1994 |
| Half-Life |
5 Sec |
JIS L1094-A |
|
